AQUALOOP Single Membrane Station – 80 Gallons/day


Product Description

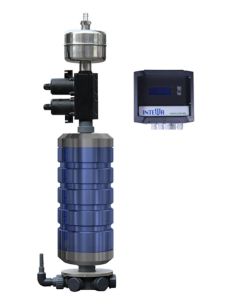

The AQUALOOP single membrane station is equipped with one membrane cartridge. The integrated pump unit draws the water through the ultrafiltration membrane and supplies it through the filtrate hose to the clear water storage. The length of the filtrate hose (see accessories, HORIZON ½” hose) is dimensioned to a maximum height of 9.8 Feet in relation to its position within the tank geometry. To ensure a stable, high flowrate and long service life of the membrane, it is automatically and regularly cleaned. Accordingly, the membrane is periodically backwashed. The necessary backwash volume is supplied by the system from the backwash tank located above the pumps. The membrane station comes with a hose connection for installation of an optional blower. The air provided cleans the ultrafiltration membrane fibres and also delivers oxygen for biological treatment in the membrane tank.

SKU: AQUALOOPSingle Category:


Membrane station

  • including backwash pump
  • treatment rate up to 80 Gallons / day
  • retrofitting in existing buildings possible and easy
  • incl. controller

Control unit

A controller is provided for every membrane station. This fully automatically controls the AQUALOOP water treatment plant. The operating status can be easily read from an illuminated LCD display.

  • built-in electrical regulation of pumps, depending on the number of membranes used,  saves energy and increases service life
  • smart controller adjusts the required quantity as per the need for saving energy
  • automatic back-flushing mode for low-maintenance operation
  • automatic sludge disposal to minimize maintenance
  • mode change of clean water storage tank
  • different modes can be selected
  • automatic vacation mode
  • automatic display of maintenance mode
  • automatic maintenance mode
  • optional pressure sensor for monitoring function
  • low voltage operation with small systems
  • connection for controlling supplemental supply in domestic water works

Additional information

Weight 28.66 oz
Dimensions 10.43 × 15.75 × 23.62 in
